Apple Parallel Hard Drive Emulator

Product details

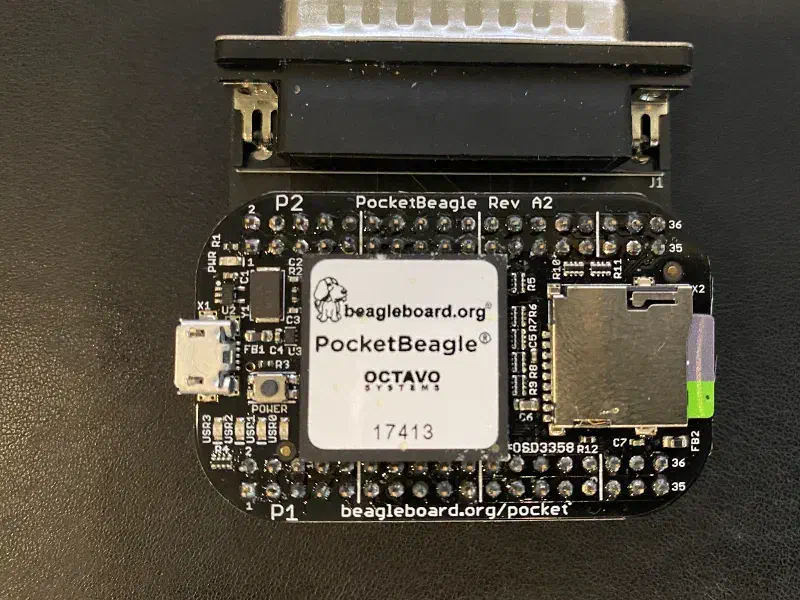

The Apple Parallel Port Hard Drive Emulator faithfully emulates the Apple ProFile series of hard disk drives introduced in 1981 for the Apple /// Computer and later the Apple Lisa and Macintosh XL. With little effort, one can install Lisa Office System, MacWorks, SOS, and other operating systems for the Apple Lisa, Macintosh XL, and Apple ///.

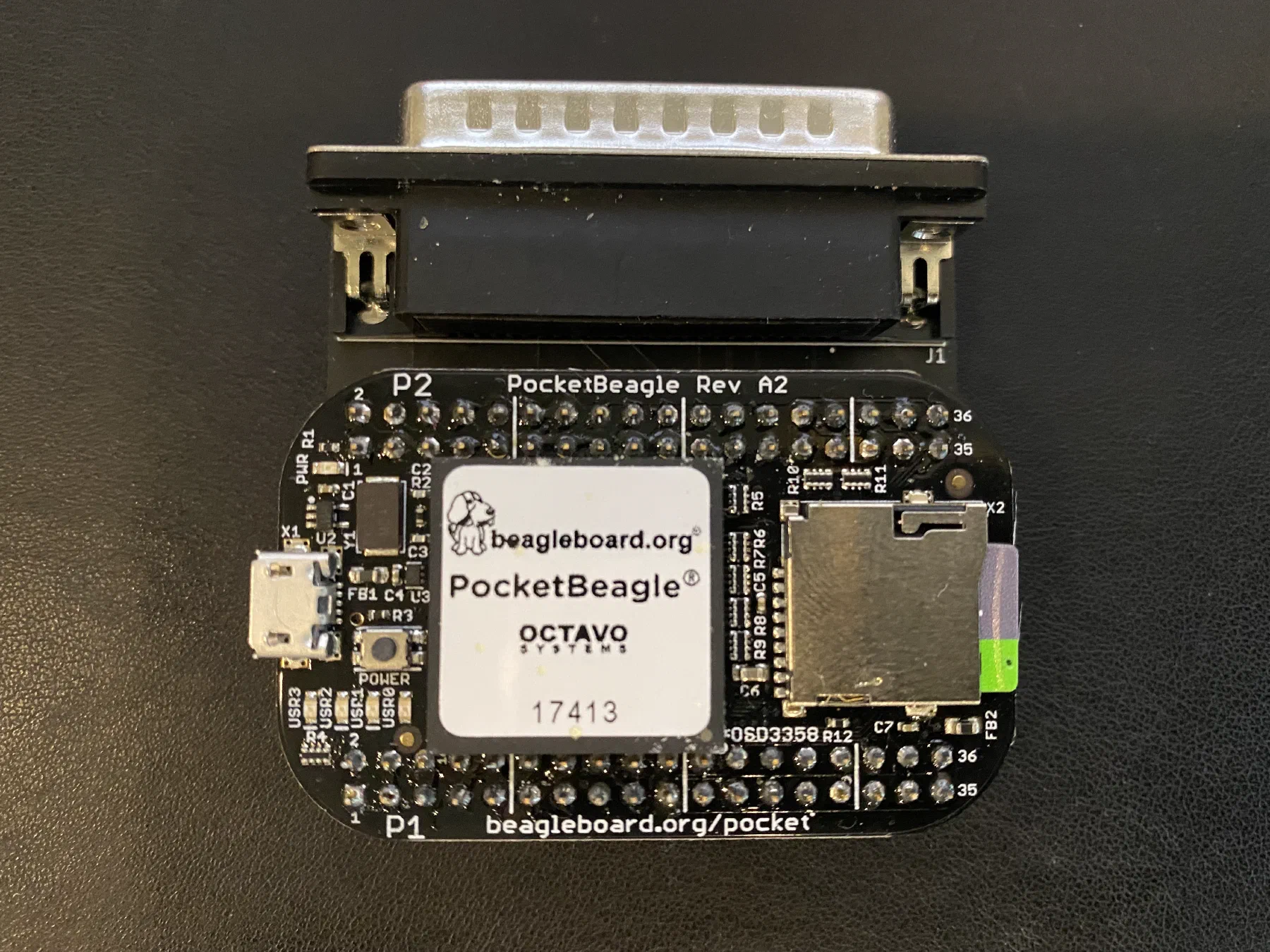

Tom Stepleton, who designed the Cameo/Aphid cape for the PocketBeagle and the associated software, has graciously donated his efforts to the public domain - so feel free to build one yourself! Information about the Cameo, Aphid, and Selector can be found at the following links:

• Cameo: https://github.com/stepleton/cameo
• Aphid: https://github.com/stepleton/cameo/tree/master/aphid
• Selector: https://github.com/stepleton/cameo/tree/master/aphid/selector

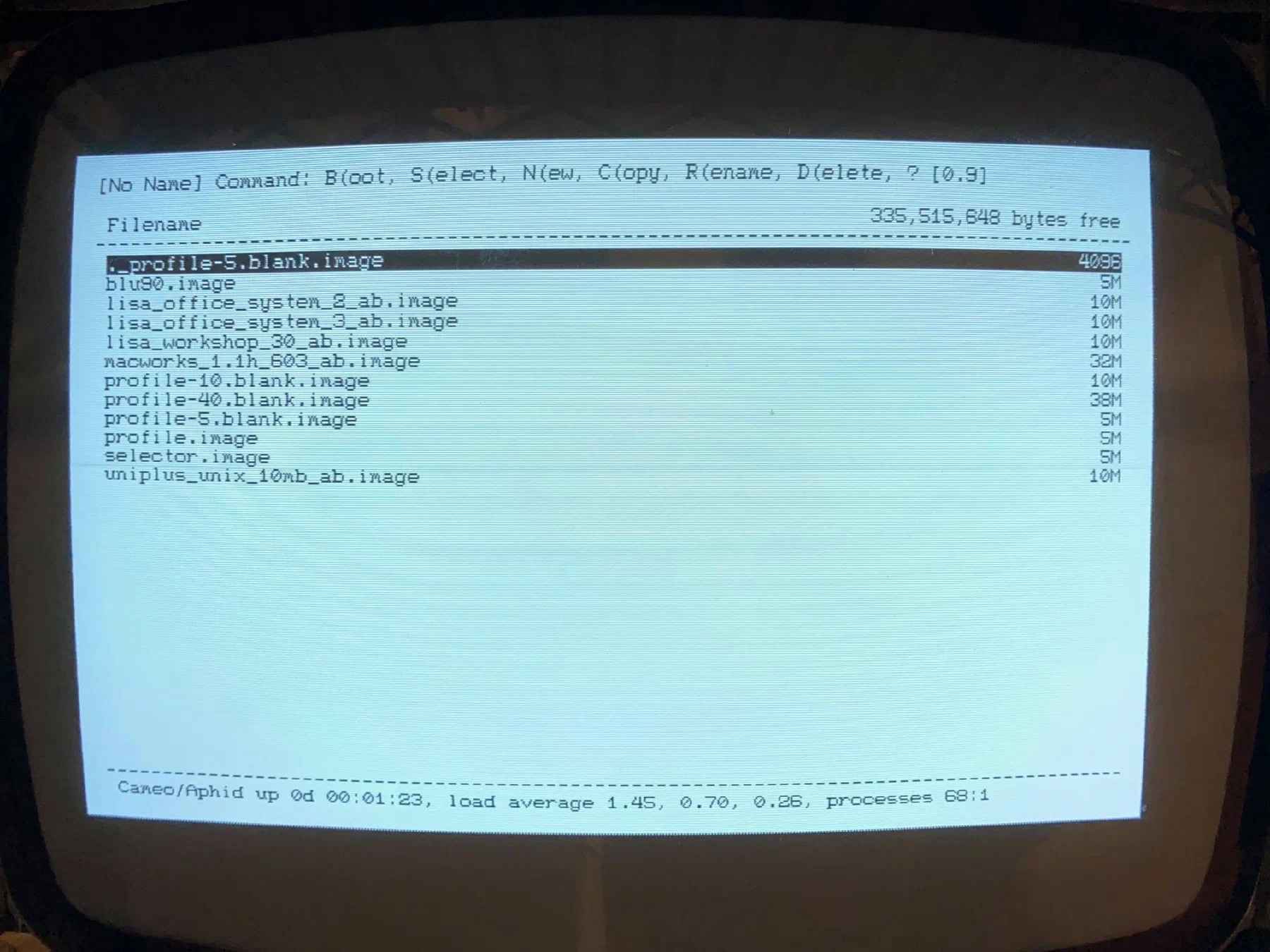

The emulator is a Linux-based system that works by presenting a disk image file as an Apple ProFile hard drive to the connected system. It supports 5MB and 10MB “ProFile” disk sizes, as well as arbitrary sizes for operating systems that support it (i.e. MacWorks).

Revisions

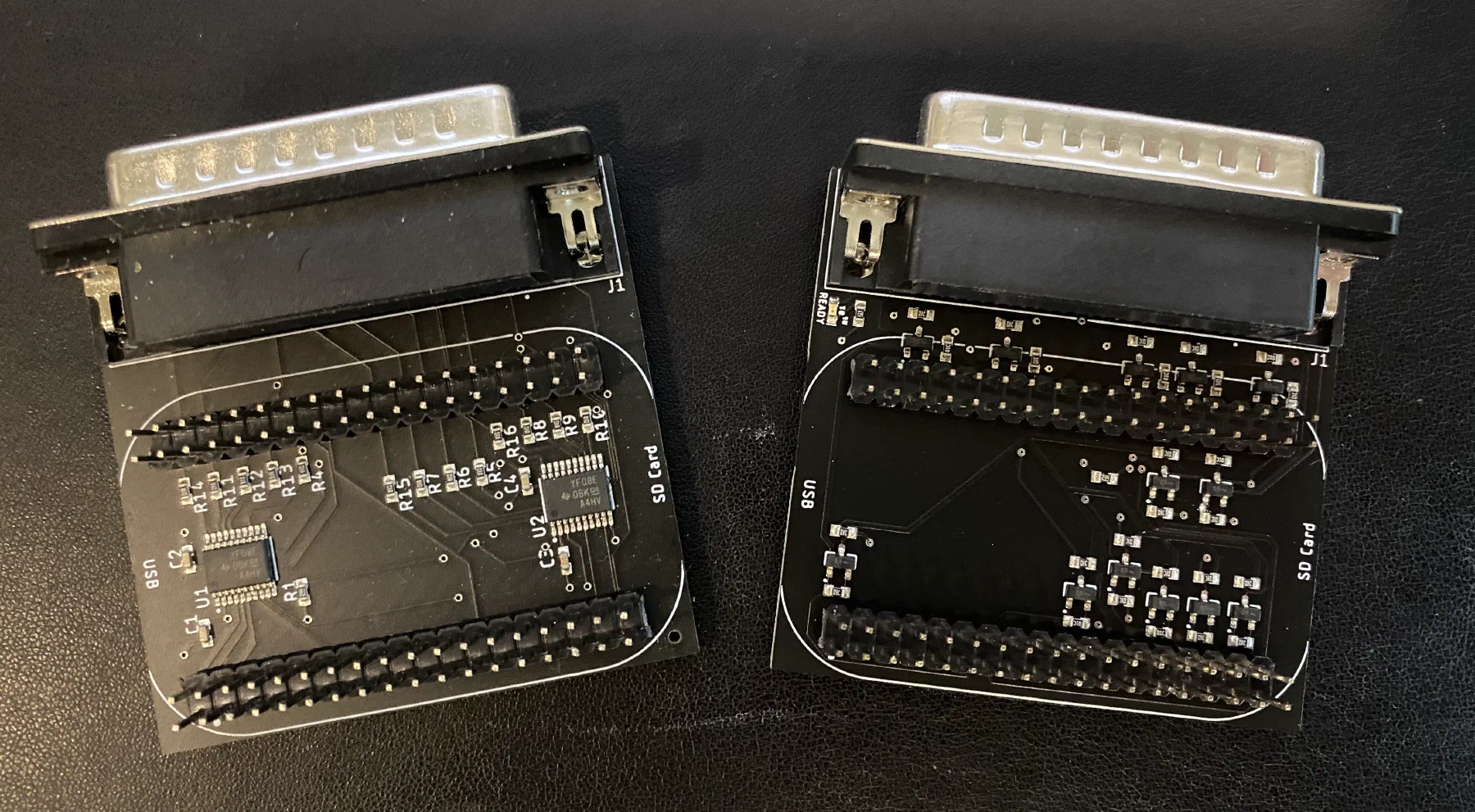

There are two variants of this product. Choose ‘Rev A’ or ‘Rev B’ at checkout.

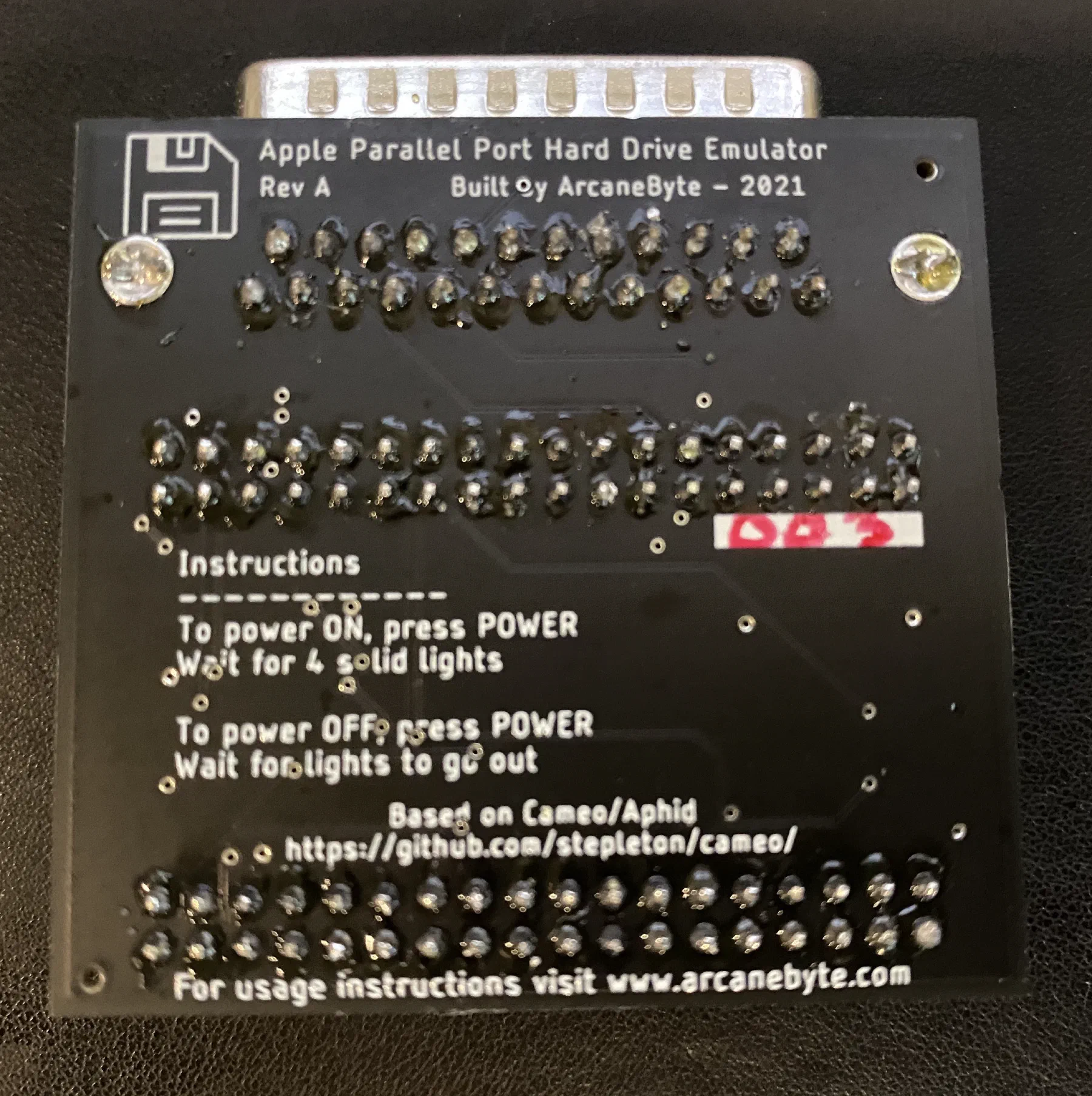

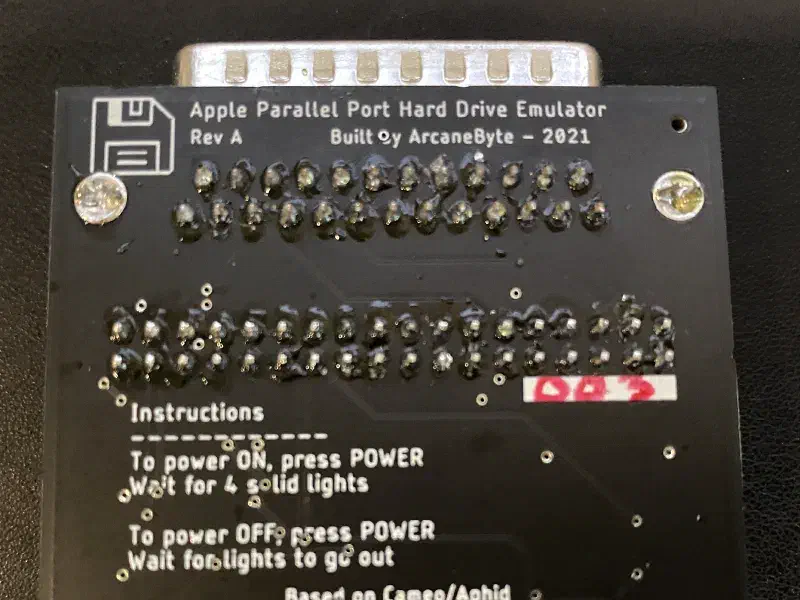

• Revision A: Supports Apple Lisa 2/5 and Apple ///

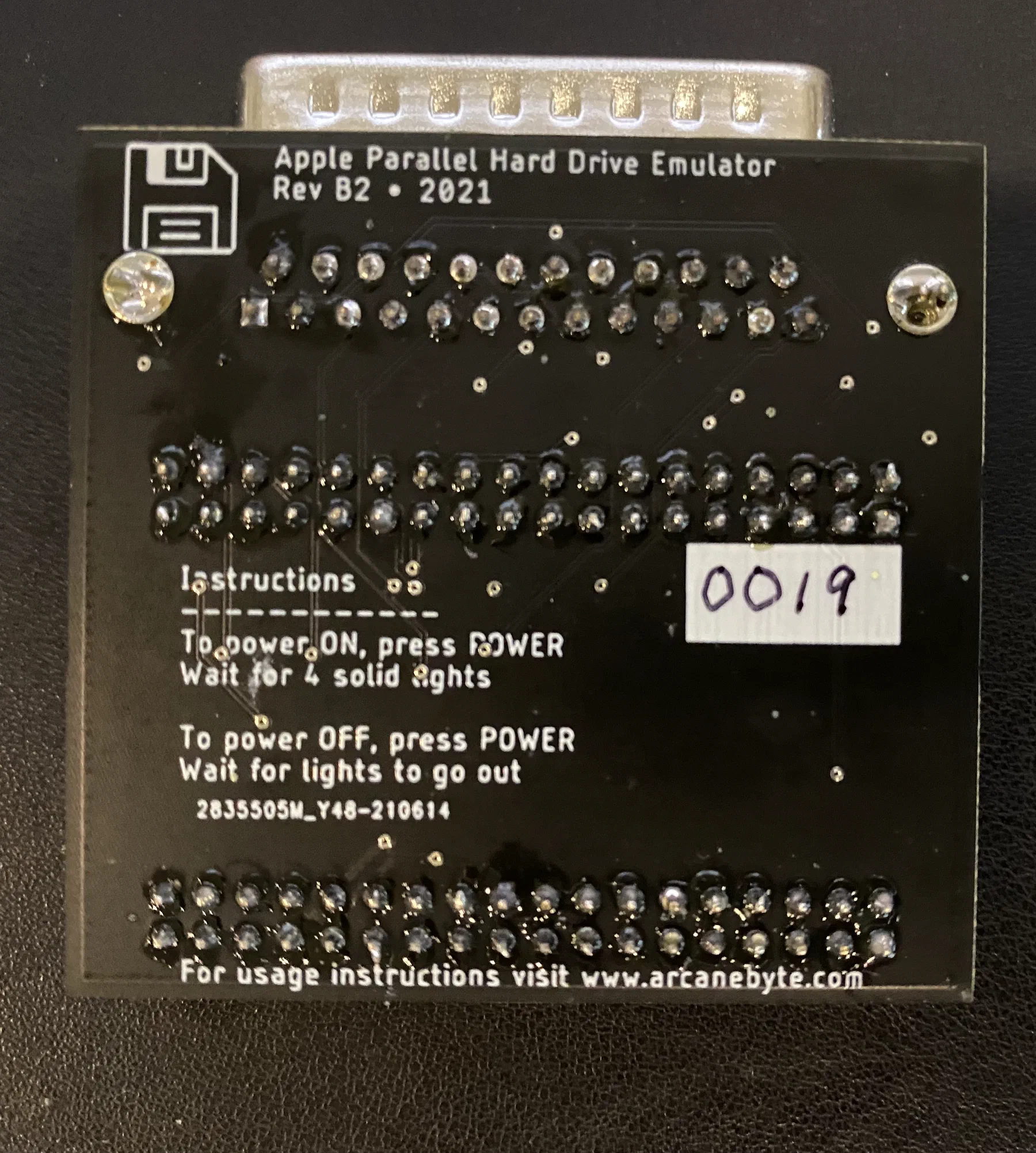

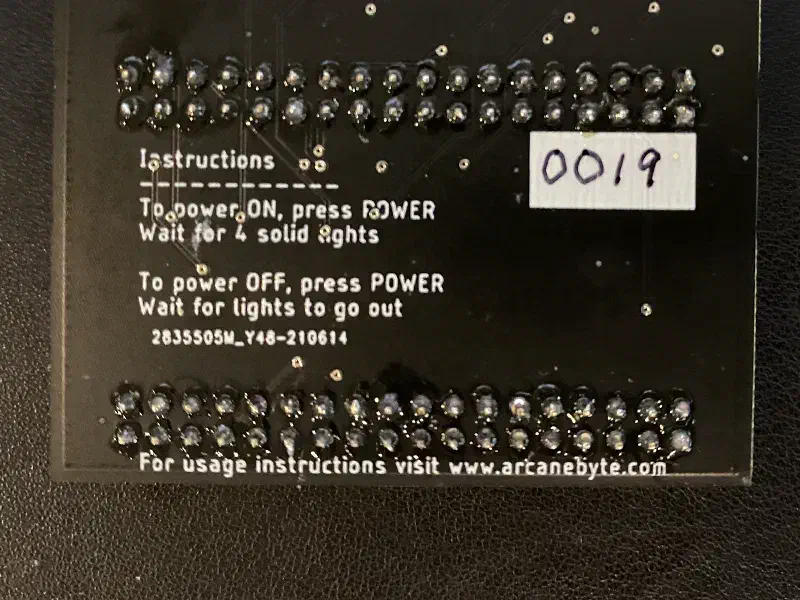

• Revision B: Supports Apple Lisa 2/5, Apple Lisa 2/10, and Apple ///

Both Rev A and Rev B designs have been made available for download in EAGLE format should you choose to build one yourself.

What’s included

At this time, all Apple Parallel Port Hard Drive Emulator devices sold by ArcaneByte are sold as a completed kit that include the emulator, adapter board, SD card with pre-installed disk images (Lisa Only), and a MicroUSB power cable. For Lisa 2/10 systems, a Widget adapter is recommended (sold separately).
