WiFiModem
A Hayes-compatible wifi modem, so your vintage machine can dial an IP address.
Fits Any machine with an RS232 serial port

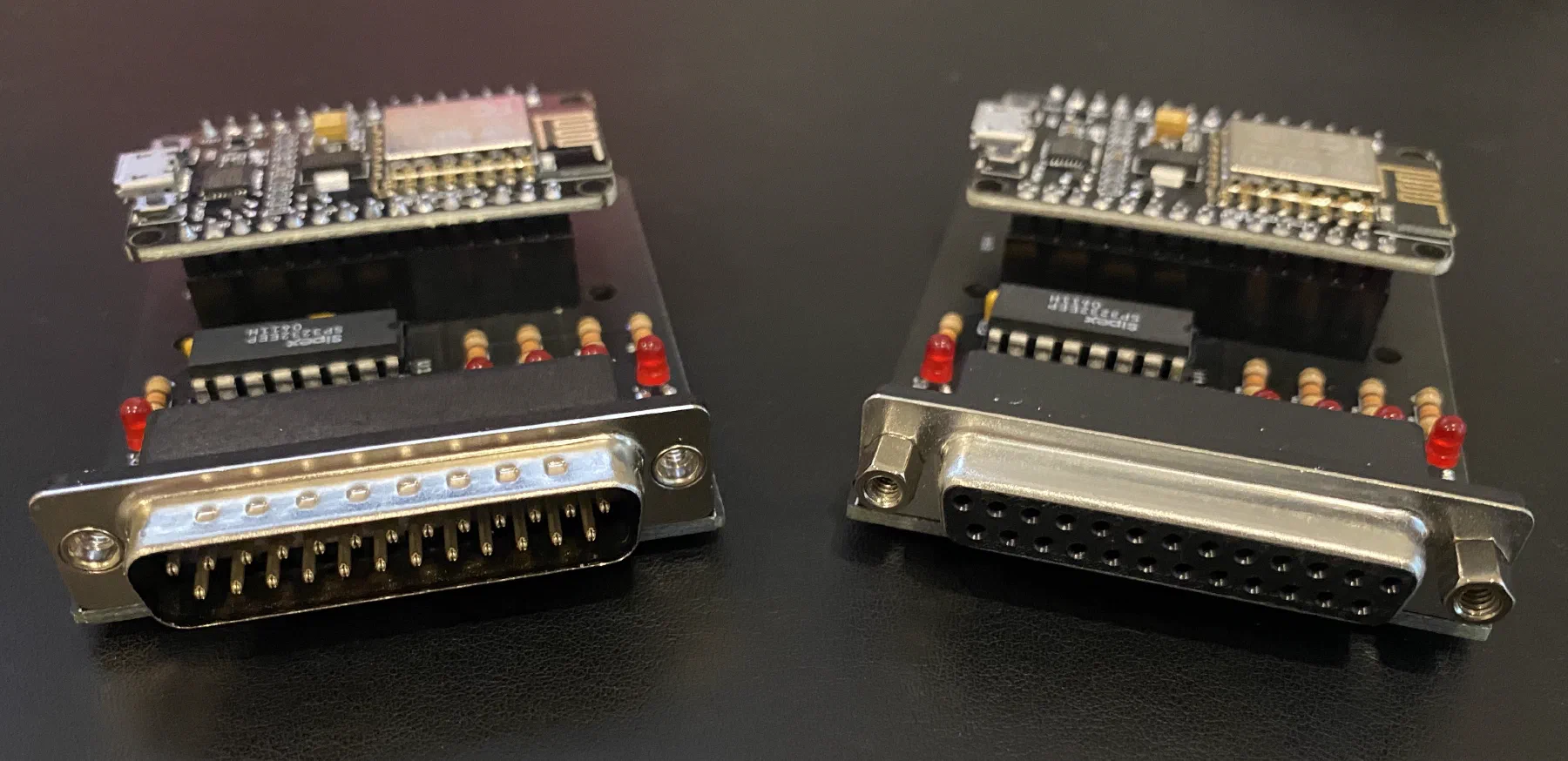

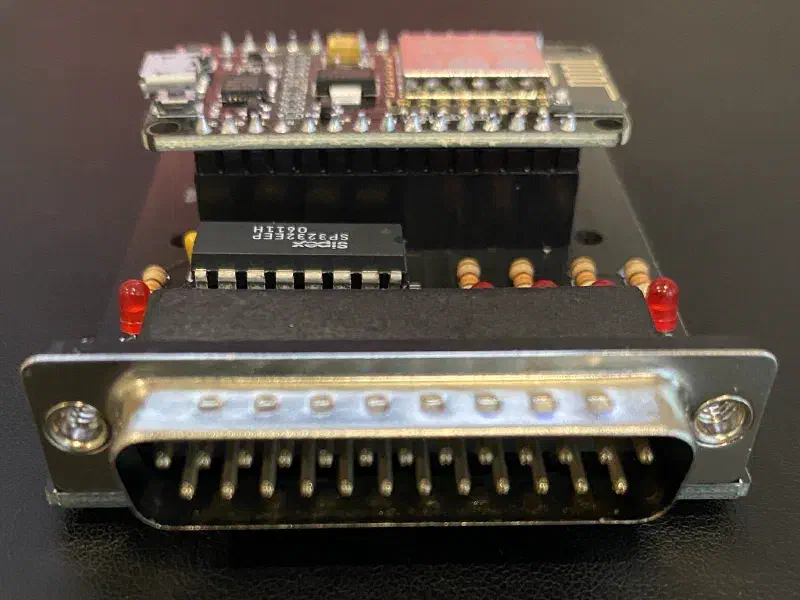

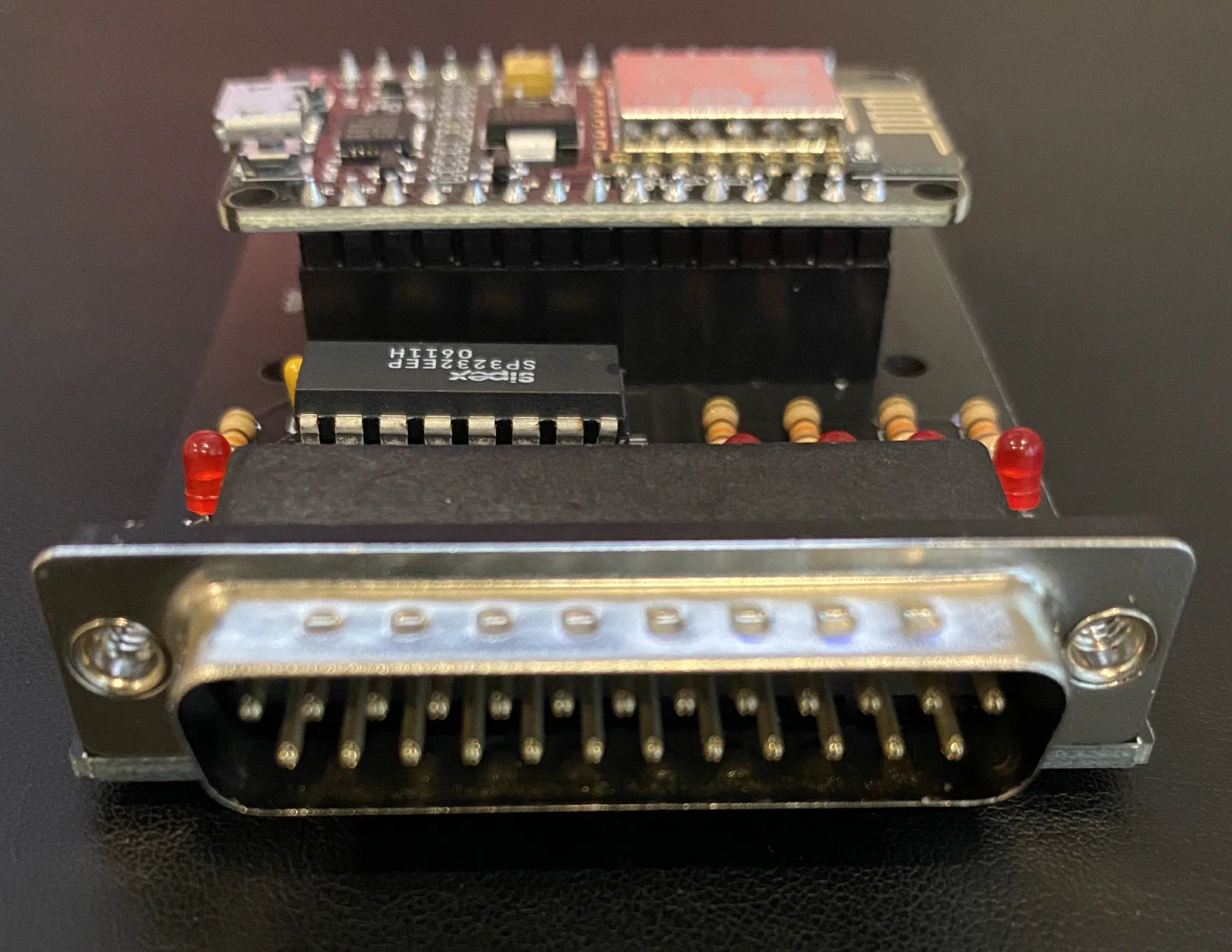

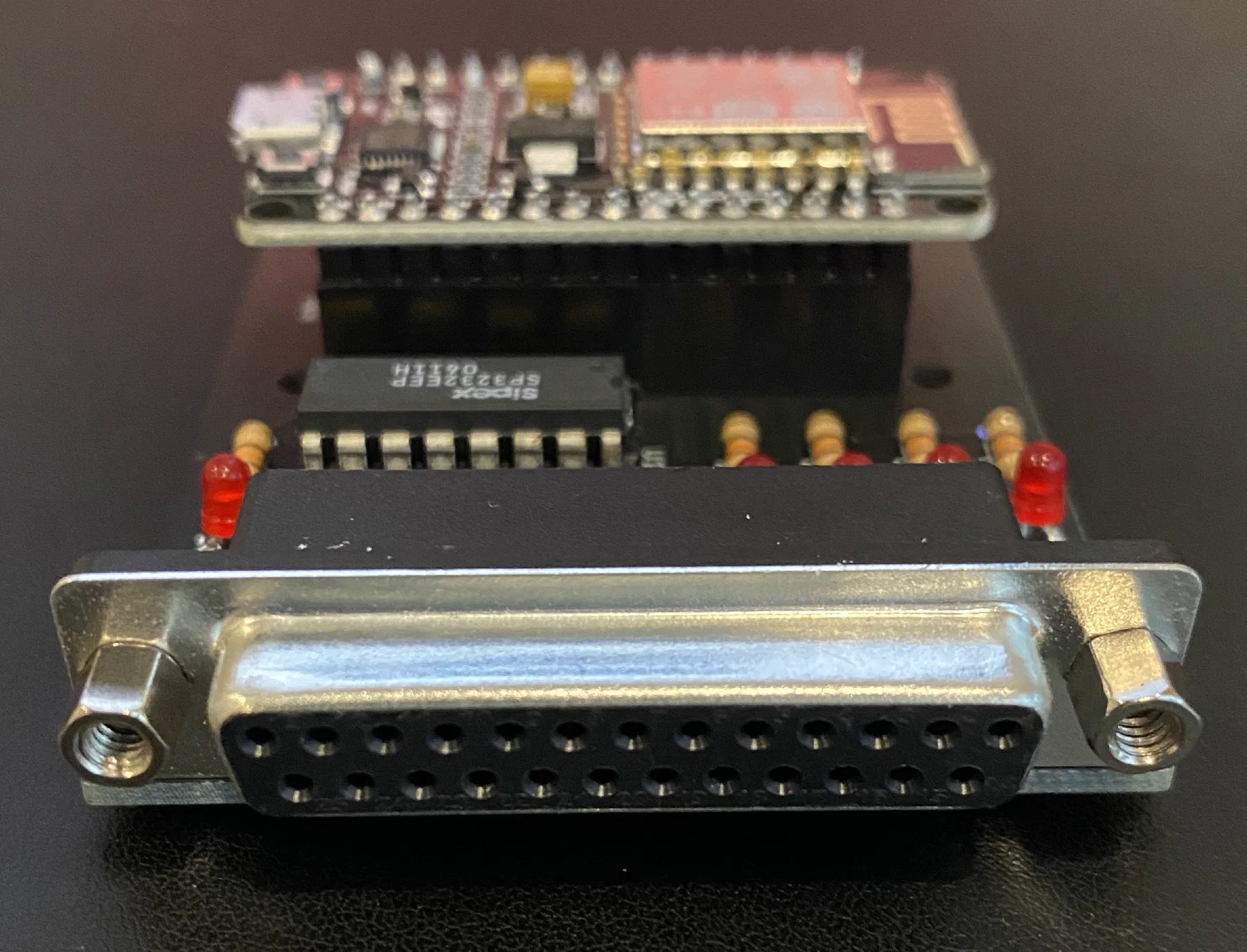

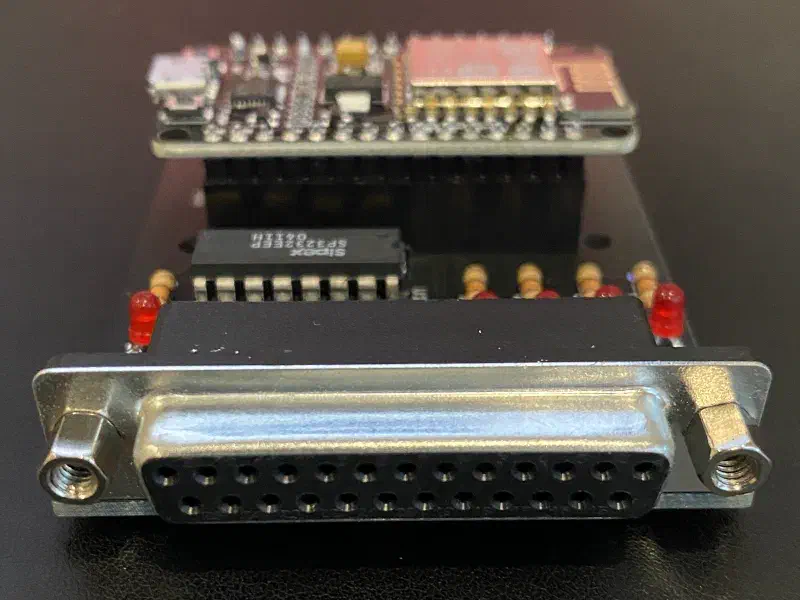

There are two variants of this product. Choose ‘male’ or ‘female’ connector at checkout.
Download the Quick Start Guide (PDF)
- Ships from San Antonio, Texas
- 30-day returns
- 30-day warranty
Product details
Retro is cosmo! The ArcaneByte WiFiModem is a Hayes-compatible wifi modem for vintage computers with an RS232 serial port that can be used to connect to Internet-based resources.

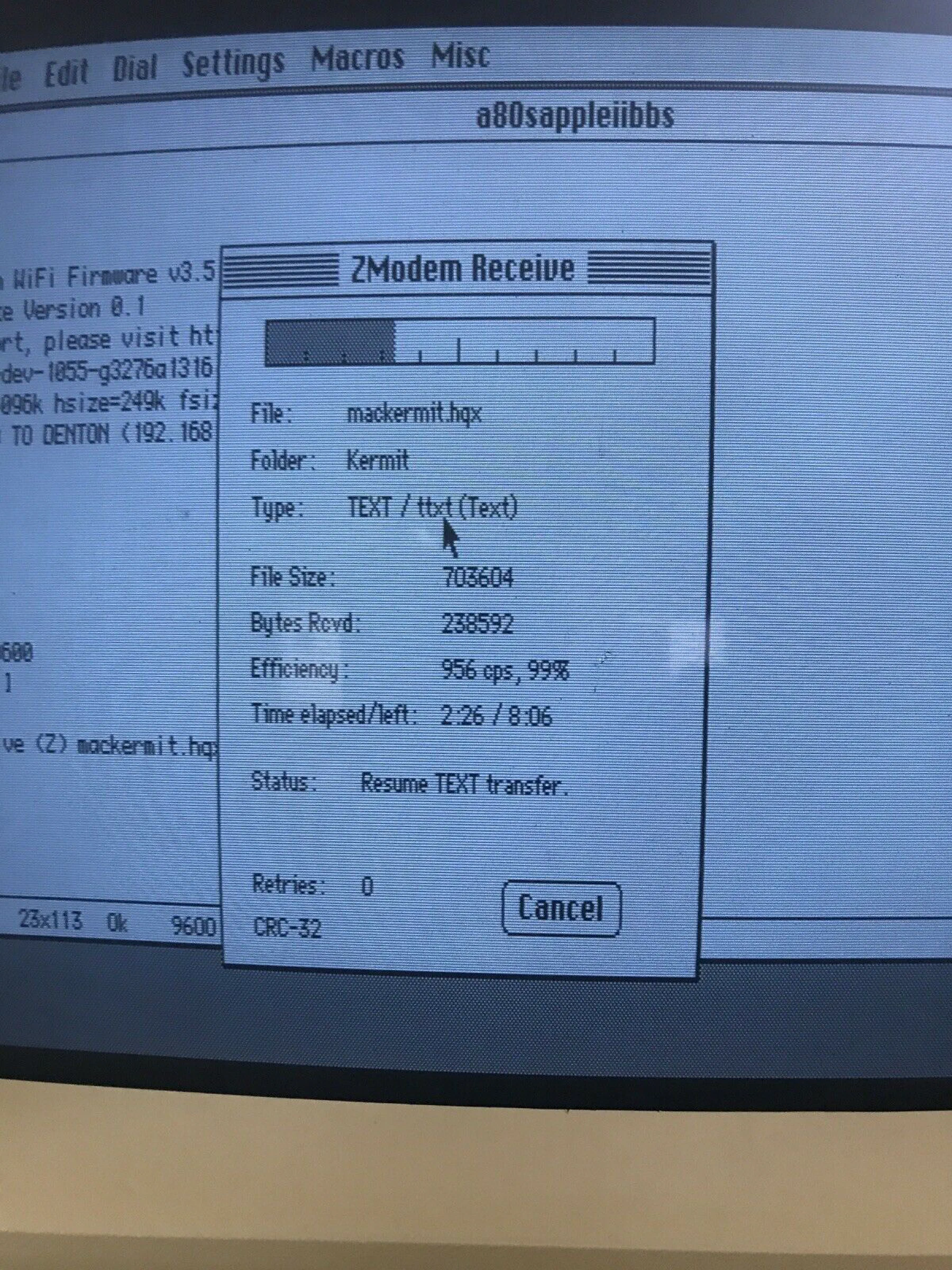

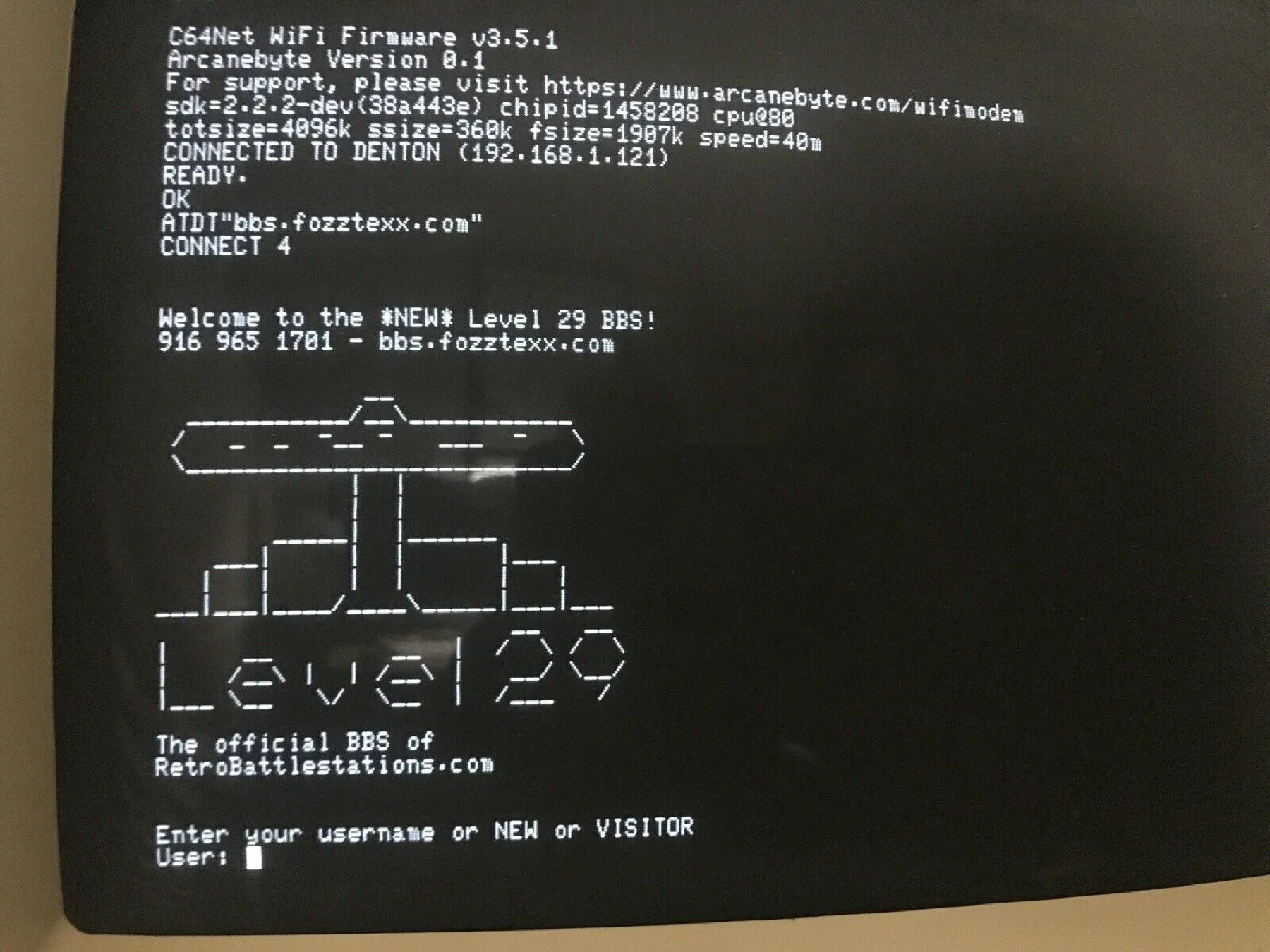

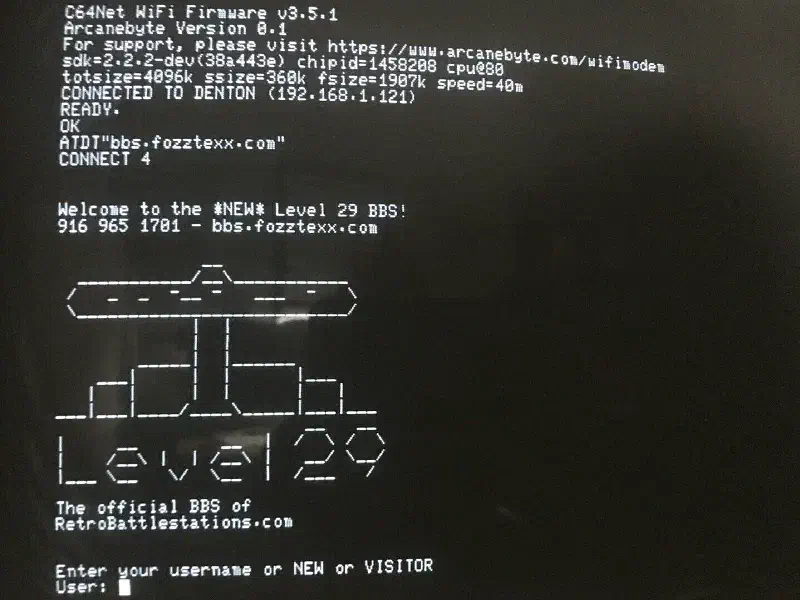

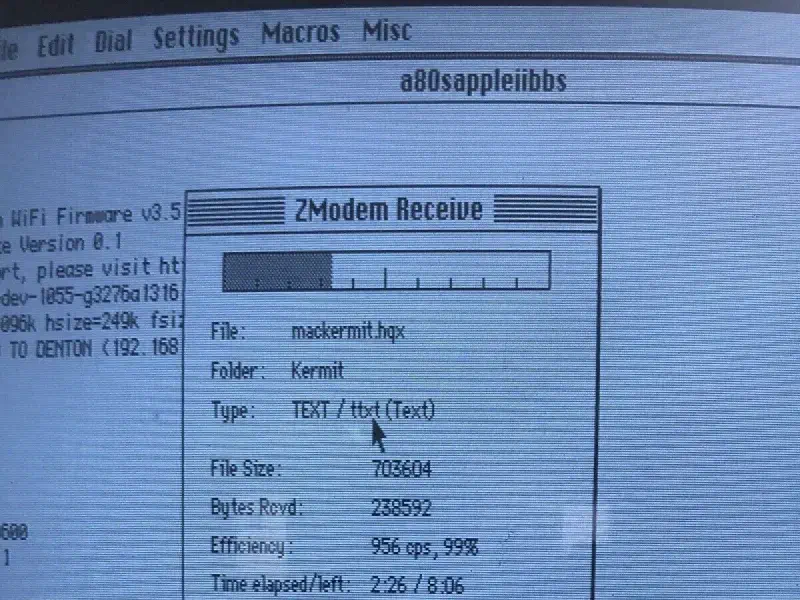

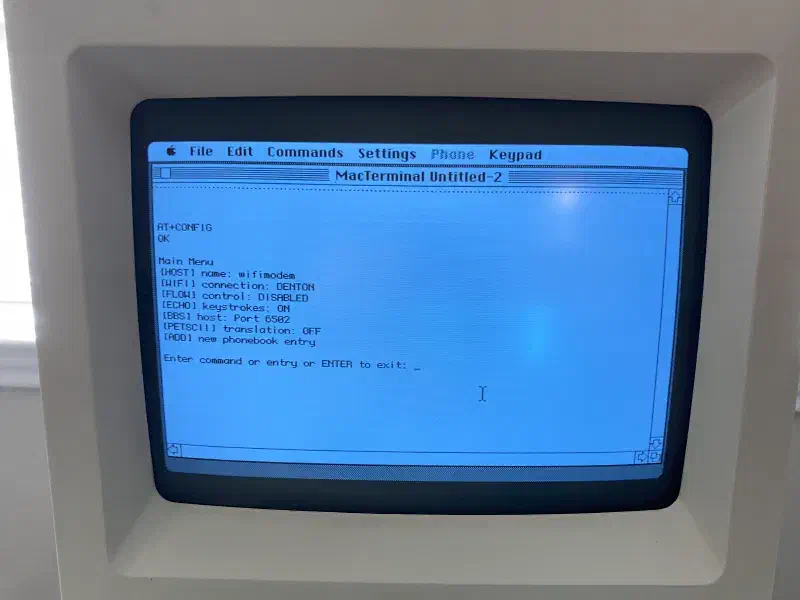

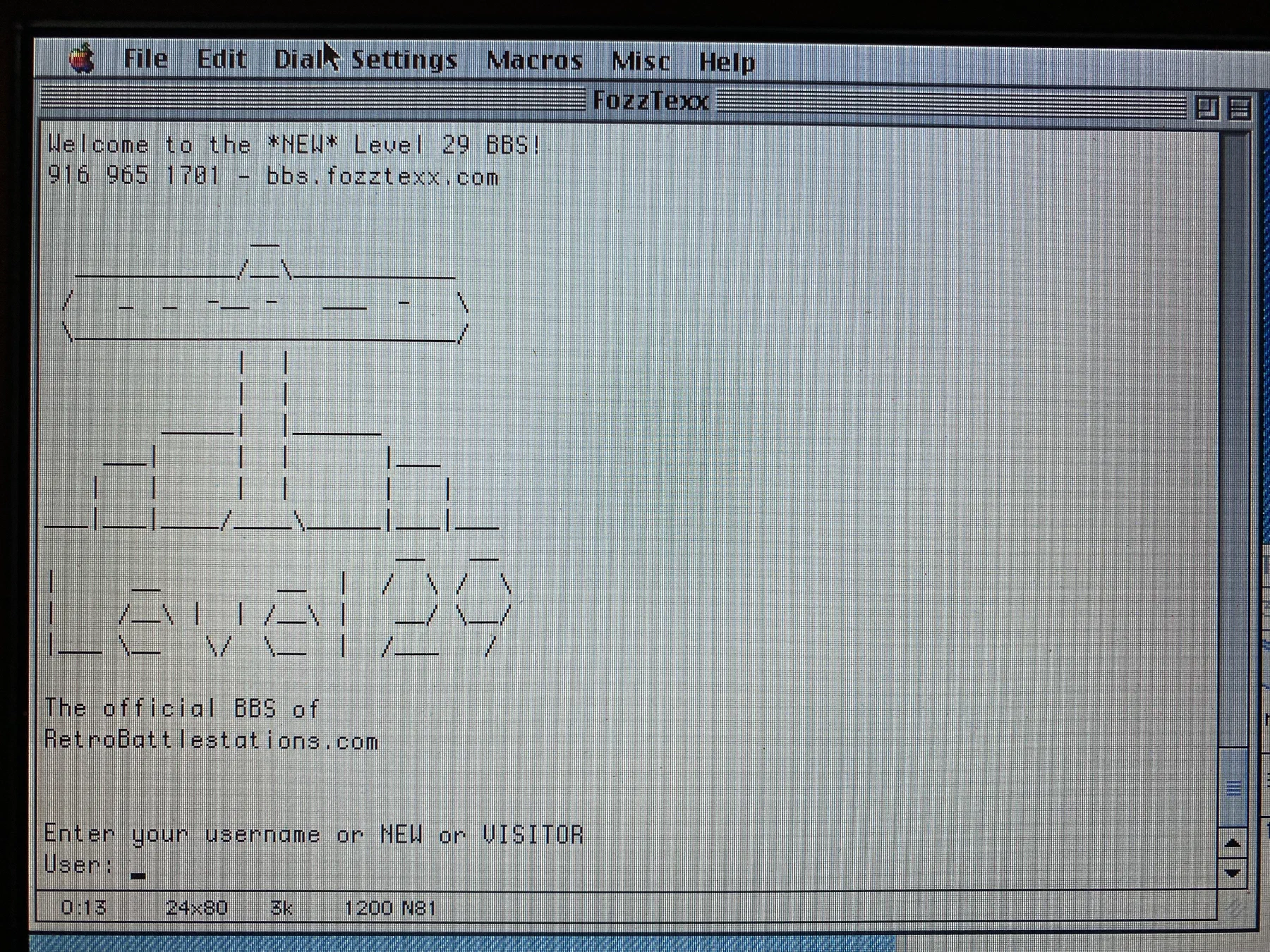

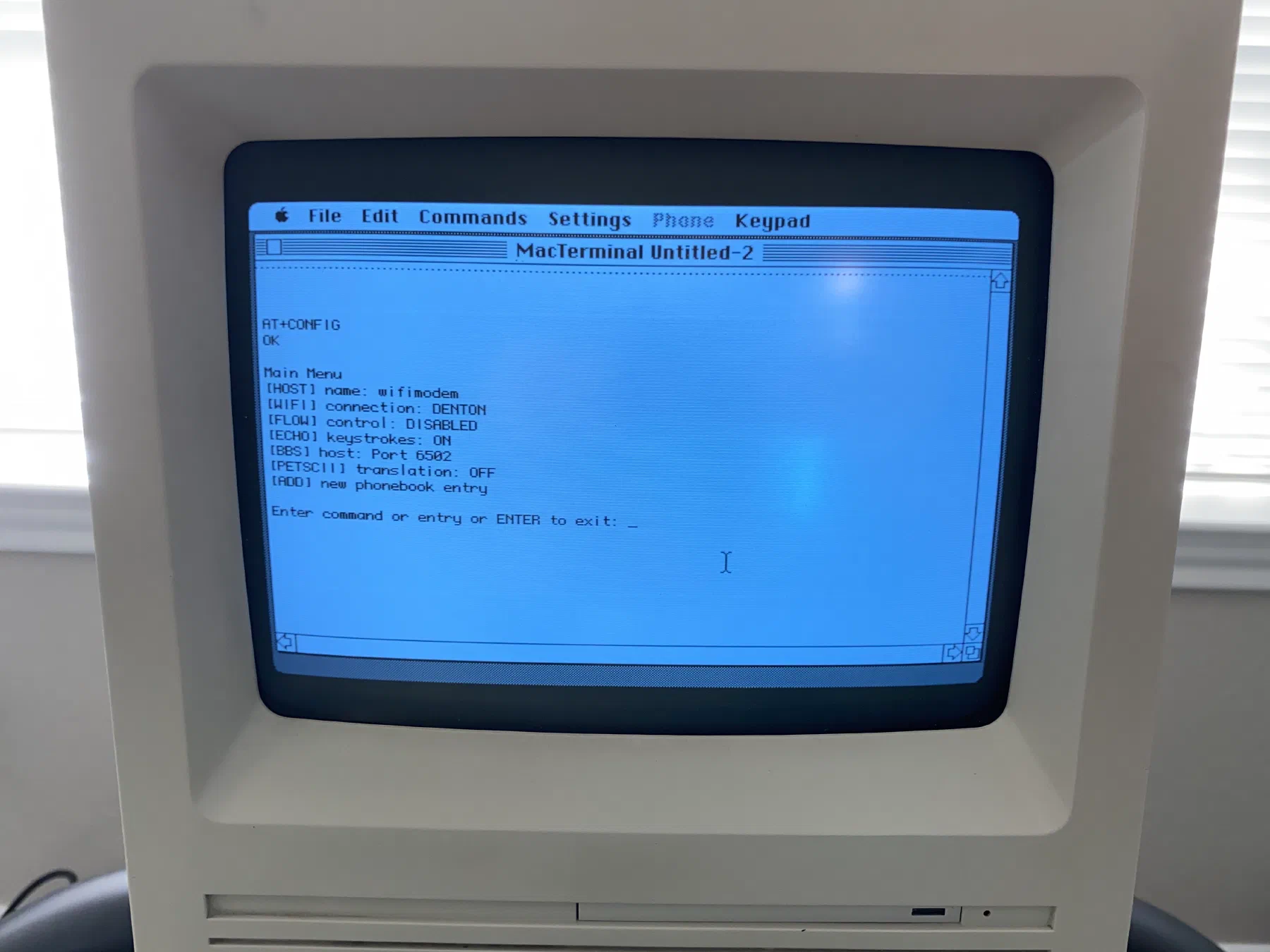

Now you can connect to your favorite BBS using an IP address rather than a phone number. Or, you can transfer files using zmodem or Kermit @ 1200 baud for that true vintage experience. If you want to host a BBS, enable the TCP/IP listener function to ‘dial in’ to your retro machine. The possibilities really are endless!

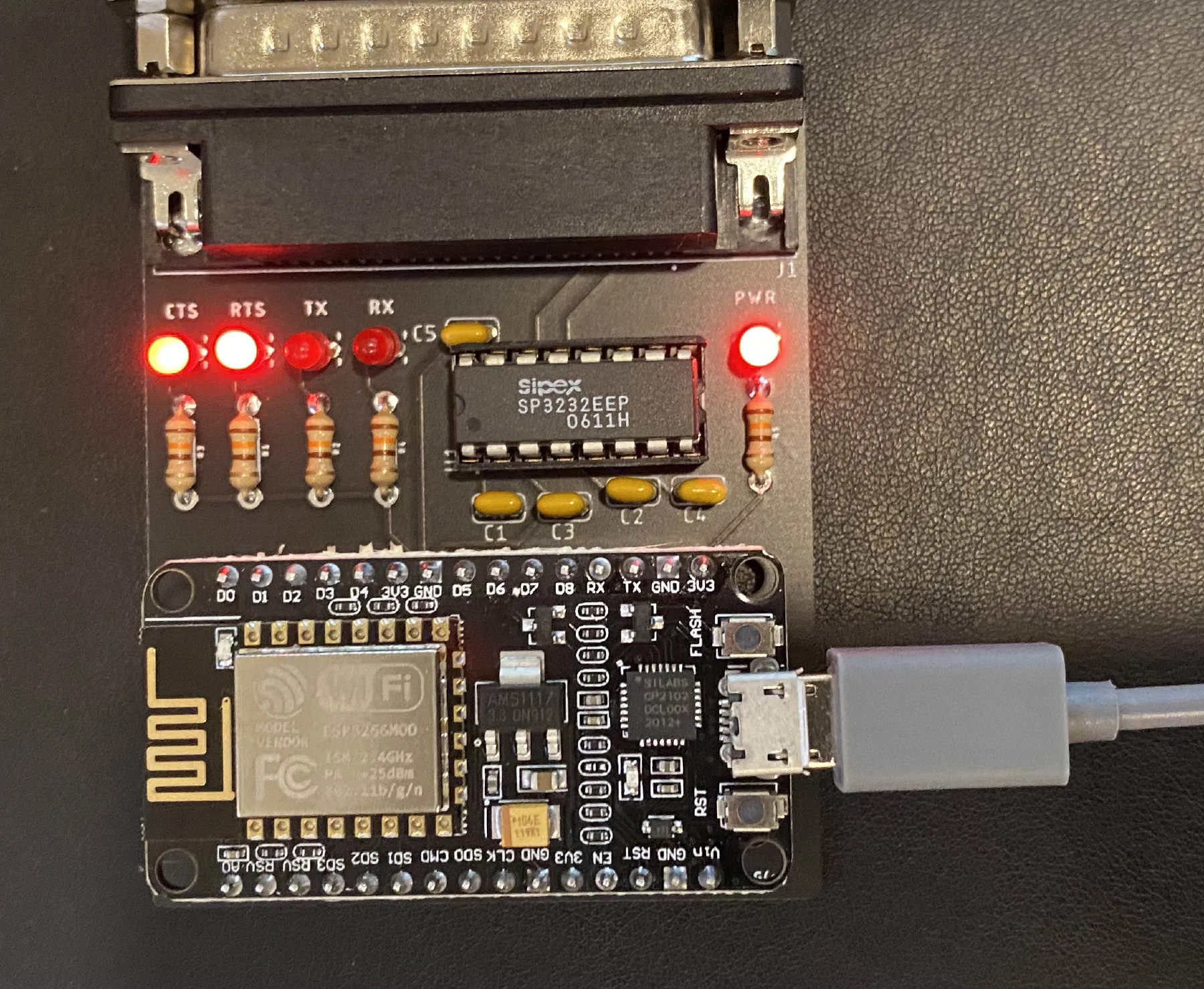

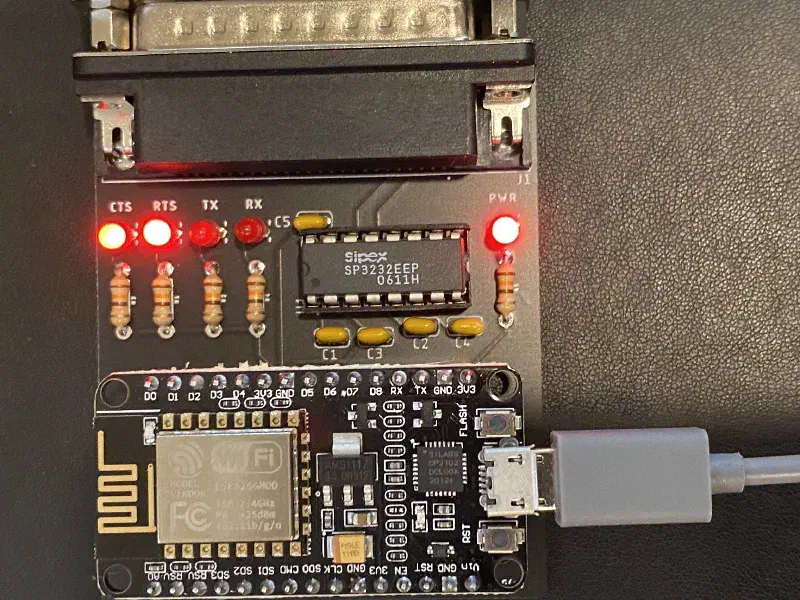

The ArcaneByte WiFiModem is a hand-built device based on the ESP8266 chipset and uses upstream Zimodem firmware authored by Bo Zimmerman (available on Github). With the Arduino IDE you are free to install any firmware you see fit. The device is powered by a MicroUSB or USB-C cable and requires 5V to operate. Connect the WiFiModem directly to your DB25 serial port, or use a straight-through extension cable and/or DB9 adapter and/or gender changer, if necessary. Supports common baud rates (300, 1200, 2400, 4800, 9600, 19200+).
Quick start guide
For assistance in setting up the WiFiModem, download the Quick Start Guide here.
